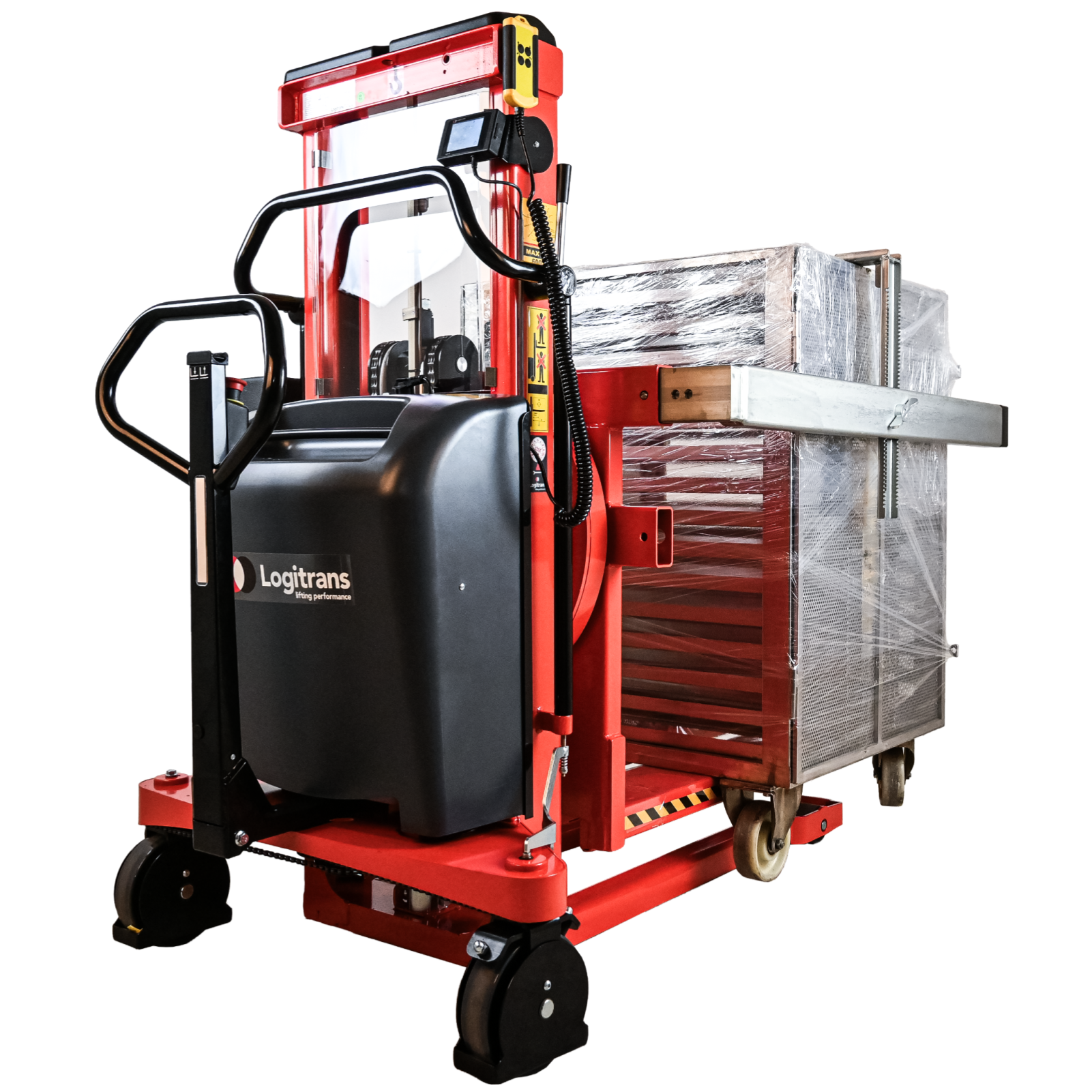

Logitrans ELFRA Electric Rotator with Adjustable Box Holders, 1000kg
From Danish manufacturer Logitrans, the ELFRA semi electric Rotator is a unique and customisable solution to lifting, turning and tipping boxes and crates. Different sized boxes with widths between 800mm and 1200mm can be handled, and up to 1000kg can be lifted and turned. Lift heights from 920mm to 1910mm are available.

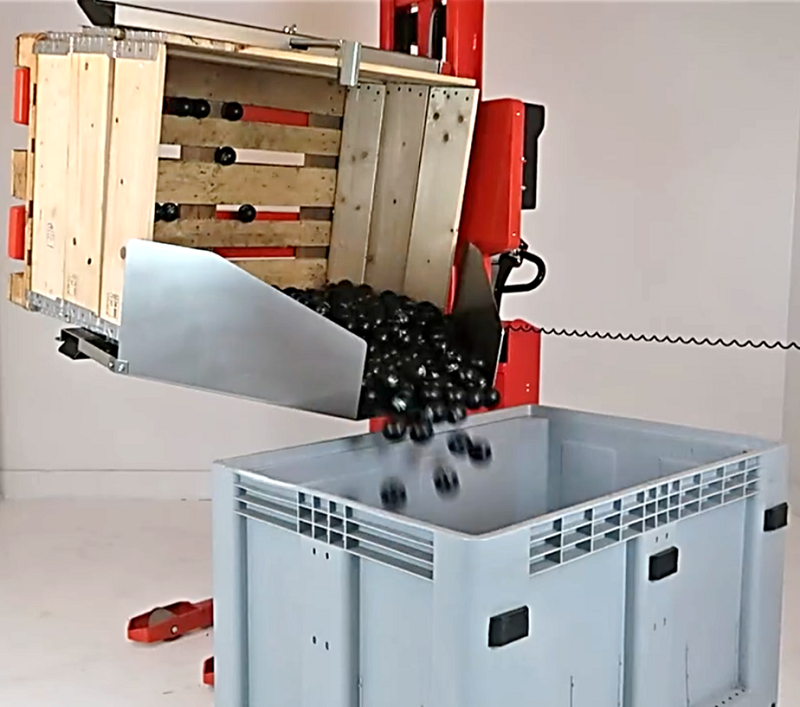

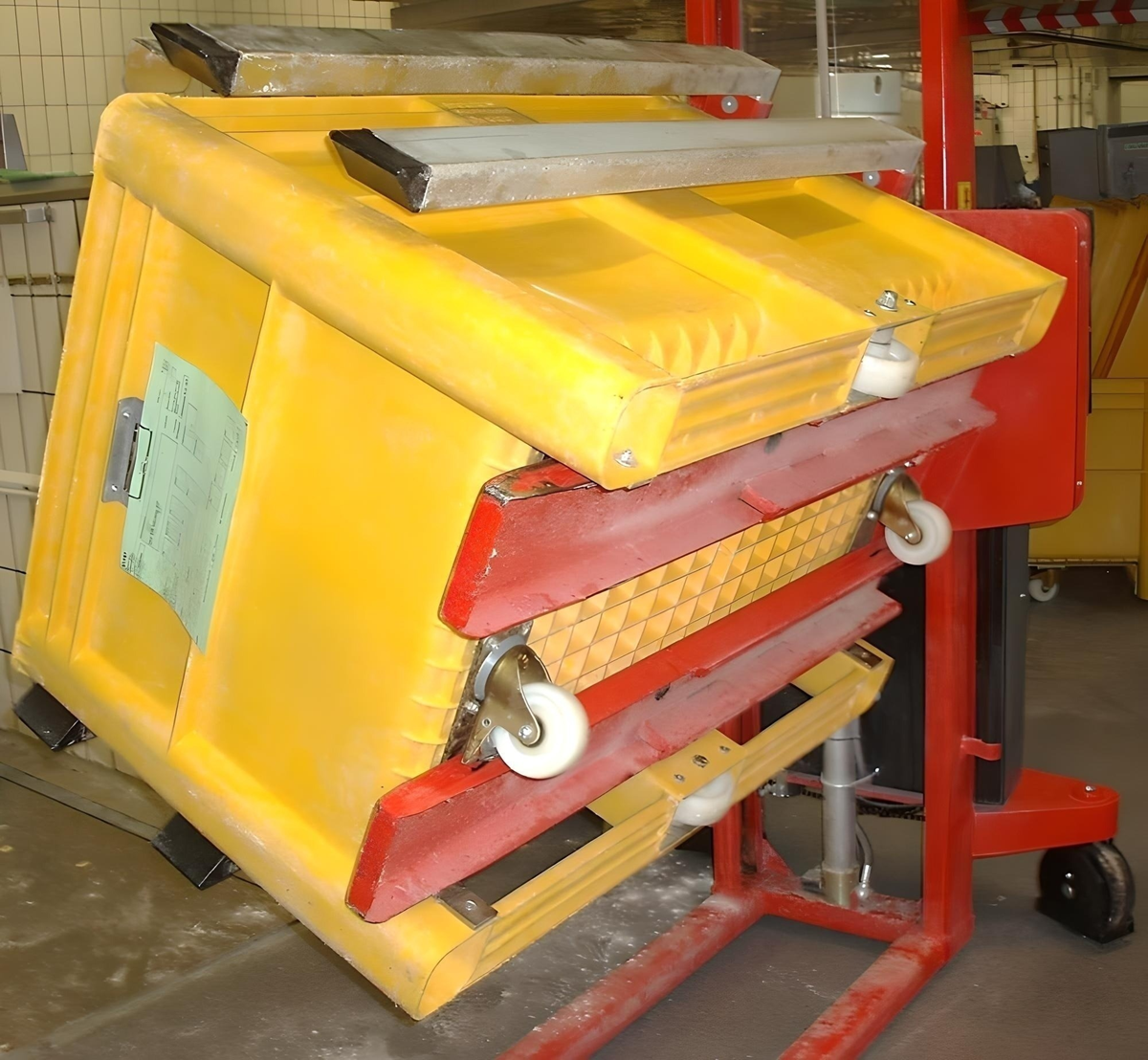

The Rotator's side tilting forks allow easy access to contents of boxes, crates, stillages, dolavs and box pallets without stretching, bending and straining your back. It can rotate up to 180 degrees each way, so boxes can be tipped and completely emptied if required.
This particular model has electric lift/lower and rototate. A fully powered Rotator with electric drive is also available. A stainless steel Rotator can be supplied for food and pharmaceutical applications in high care areas: please contact us to discuss your requirement.
The ELFRA is suitable for handling box pallets via sides where bottom runners are not present. If you are handling closed box pallets with bottom runners, then a straddle Rotator is also available.
Customise your Rotator: for non standard box and crate sizes and IBC containers, the Rotator can be supplied with custom bespoke fork widths and fork lengths. It can also be supplied with a multi-purpose carriage and customised with special features, to lift and turn non palletised goods, such as tote bins & Euro bins. Please feel free to contact us to discuss your application.
Logitrans equipment is built to excellent European standards and is backed up with a 2 year manufacturer's warranty.
Features:
- Electric lift lower & tilt functions, manual propulsion
- Adjustable box holders, to handle different crate sizes
- Wrapover support legs for handling open crates via sides where bottom runners are not present
- Tilts up to 180 degrees each way
- Digital controller with large touch screen LCD display, sets the degree of tilt required and the rotation speed
- Able to programme multiple stops (turning angle, speed, rotation)
- Choice of lift heights from 920mm to 1910mm
- Remote control for the lift & tilt functions (optional wireless remote also available)
- Optional: side support clamps provide extra stability when tilting more than 60 degrees
- Optional: side support plates provide greater rigidity when handling cardboard boxes
- Optional: multi purpose carriage, to lift and rotate non palletised items (eg tools)
- A stainless steel version is also available, for food and pharma high care areas
- A straddle version is available, for handling both open and closed crates, with or without bottom runners
- 2 year parts warranty
Logitrans ELFRA Electric Rotator with Adjustable Box Holders, 1000kg
Technical Data |
Unit |
Info |
Model |
|
Logitrans ELFRA |
Operator Type |
|
Pedestrian |
Lift Type |
|
Electric |
Load Capacity |
Kg |
1000* |
Dimensions |
Unit |
Info |
Lowered Height (Forks) |
mm |
90 |
Lift Height |
mm |
920 / 1200 / 1400 / 1600 / 1910 |
Fork Span |
mm |
560 / 680 |
Fork Length |
mm |
1250 |
Individual Fork Width |
mm |
163 |
Load Centre |
mm |
Fork Length / 2 |
Length without forks |
mm |
590 |
Wheels |
Unit |
Info |
Fork Roller Material |
|
Polyurethane |
Steering Wheel Material |
|
Polyurethane |
Drive & Performance |
Unit |
Info |
Battery Voltage/Capacity A/h |
V / A/h |
12 / 119 |
Battery Type |
|
Maintenance-Free |
Charger Internal or External / Rating |
|
Internal 12V - 230V |
Lift Motor Rating |
Kw |
1.1 |
Lift Speed with/without load |
m/ s |
0.05 / 0.07 |
Lowering Speed with/without load |
m/ s |
0.12 / 0.04 |
* maximum 1000kg when the load centre is maximum 80mm from the rotation centre. The load capacity is reduced, the larger the distance is between the load centre of the load and rotation centre
