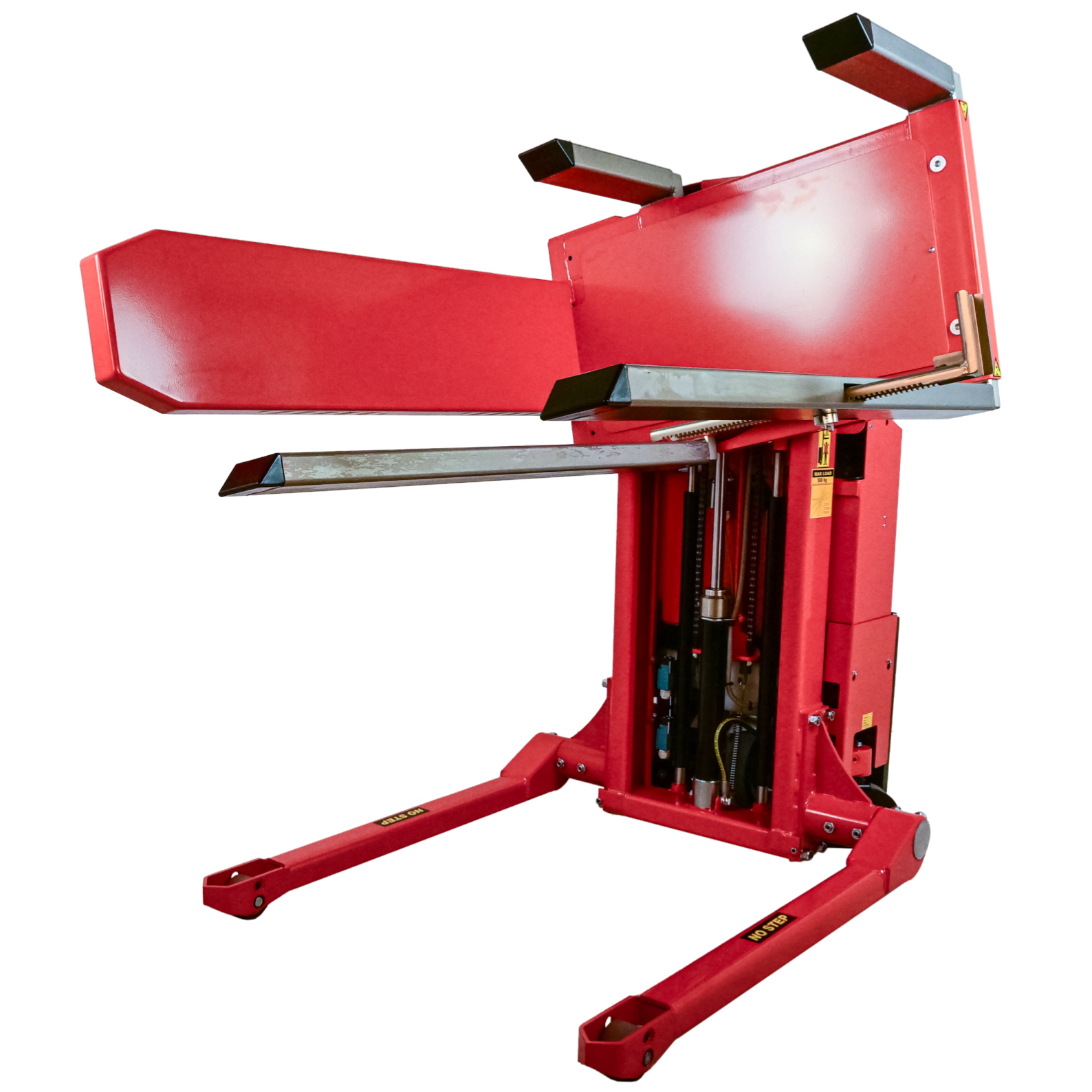

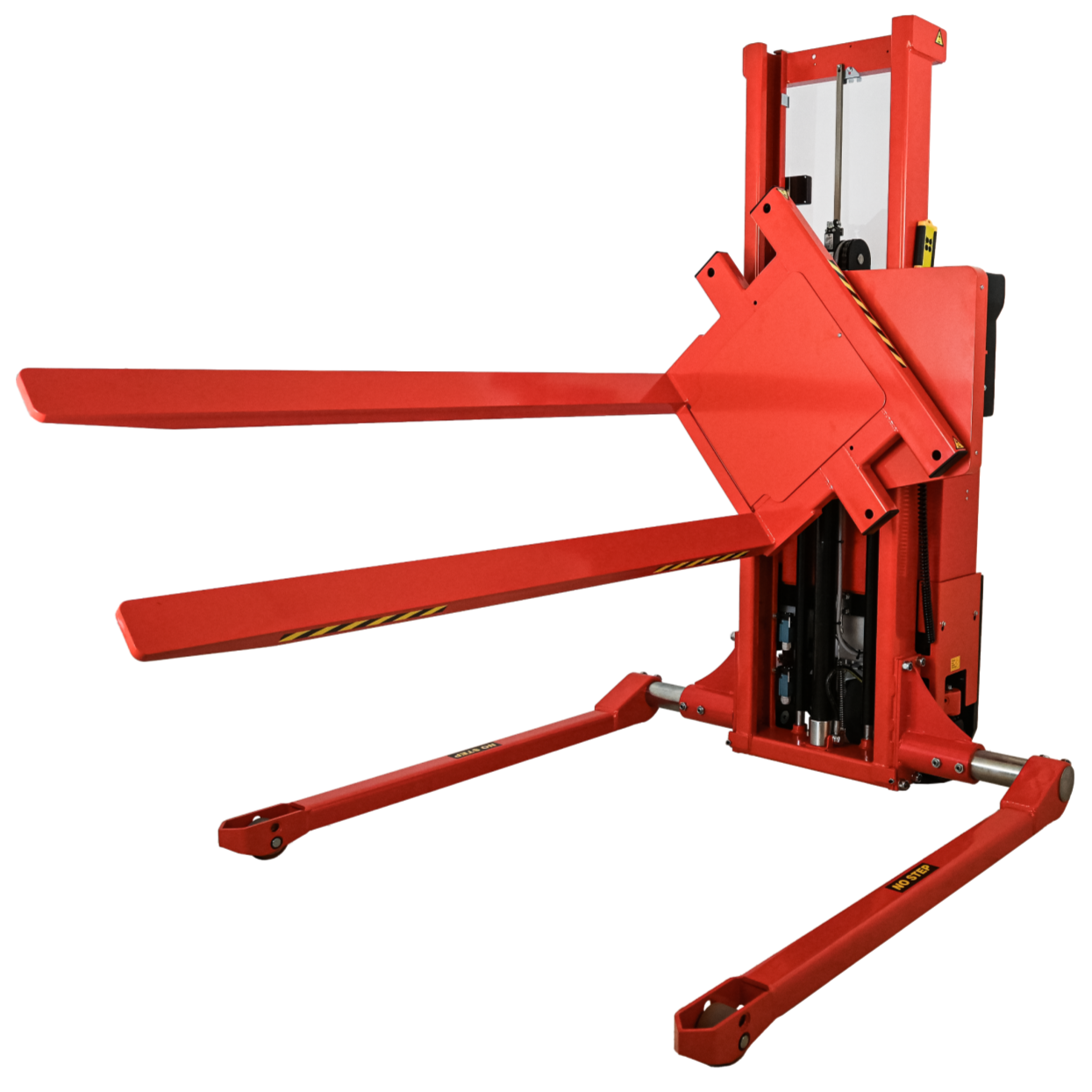

Logitrans SELFSRA Fully Powered Rotator, Straddle Support Legs, Adjustable Box Holders, 1000kg
From Danish manufacturer Logitrans, the SELFSRA all electric Rotator is a unique and customisable solution to lifting, turning and tipping boxes and crates. Different sized boxes with widths between 800mm and 1200mm can be handled and up to 1000kg can be lifted and turned. A choice of lift heights is available.
The Rotator's side tilting forks allow easy access to contents of boxes, crates, stillages and dolavs without stretching, bending and straining your back. It can rotate up to 180 degrees each way, so boxes can be tipped and completely emptied if required.
This particular model has electric lift/lower and rototate and fully powered drive - no operator effort required. A semi electric Rotator with manual propulsion is also available. A stainless steel Rotator can be supplied for food and pharmaceutical applications in high care areas: please contact us to discuss your requirement.
With adjustable straddle support legs, this Rotator can handle many different types of box pallets and crates, both open and closed (with or without bottom runners).
Customise your Rotator: for non standard box and crate sizes and IBC containers, the Rotator can be supplied with custom bespoke fork widths and fork lengths. It can also be supplied with a multi-purpose carriage and customised with special features, to lift and turn non palletised goods, such as tote bins & Euro bins. Please feel free to contact us to discuss your application.
Logitrans equipment is built to excellent European standards and is backed up with a 2 year manufacturer's warranty.
Features:
- Electric lift lower & tilt functions, fully powered drive
- Adjustable straddle support legs and box holders, to handle crates and boxes of many different sizes, inculding box pallets with bottom boards
- Tilts up to 180 degrees each way
- Digital controller with large touch screen LCD display, sets the degree of tilt required and the rotation speed
- Able to programme multiple stops (turning angle, speed, rotation)
- Choice of lift heights from 920mm to 1910mm
- Remote control for the lift & tilt functions (optional wireless remote also available)
- Optional: side support clamps provide extra stability when tilting more than 60 degrees
- Optional: side support plates provide greater rigidity when handling cardboard boxes
- Optional: multi purpose carriage, to lift and rotate non palletised items (eg tools)
- A stainless steel version is also available, for food and pharma high care areas
- A wrapover version is available, for handling open sided box pallets, via sides without bottom runners
- 2 year parts warranty
Logitrans SELFSRA Fully Powered Rotator, Straddle Support Legs, Adjustable Box Holders, 1000kg
Technical Data |
Unit |
Info |
Model |
|
Logitrans SELFSRA Rotator |
Operator Type |
|
Pedestrian |
Lift Type |
|
Electric |
Load Capacity |
Kg |
1000* |
Dimensions |
Unit |
Info |
Lowered Height (Forks) |
mm |
90 |
Lift Height |
mm |
920 / 1200 / 1400 / 1600 / 1910 |
Fork Span |
mm |
560 / 680 |
Fork Length |
mm |
1250 |
Individual Fork Width |
mm |
163 |
Load Centre |
mm |
Fork Length / 2 |
Length without forks |
mm |
703 |
Width between Straddle Legs |
mm |
Adjustable: 850-942 / 942-1124 / 1124-1306 / 1240-1422** |
Wheels |
Unit |
Info |
Fork Roller Material |
|
Vulkollan |
Drive Wheel Material |
|
Vulkollan |
Drive & Performance |
Unit |
Info |
Drive Motor Power (Kw) |
kw |
1.2 |
Travel Speed, loaded/unloaded (Km/h) |
Km/h |
5 / 6 (below 500mm), 3 /4 (over 500mm) |
Battery Voltage/Capacity A/h |
V / A/h |
24 / 115 |
Battery Type |
|
Maintenance-Free |
Charger Internal or External / Rating |
|
Internal 24V 15A - 230V |
Lift Motor Rating |
Kw |
1.2 |
Lift Speed with/without load |
m/ s |
0.07 / 0.12 |
Lowering Speed with/without load |
m/ s |
0.12 / 0.07 |
* maximum 1000kg when the load centre is maximum 80mm from the rotation centre. The load capacity is reduced, the larger the distance is between the load centre of the load and rotation centre
** width between straddle legs of more than 1306mm: max capacity 800kg
