E-Truck Terrain: optimised for outdoor use & uneven surfaces

PRODUCT

The E-Truck Terrain from EP Equipment, is designed to better withstand applications involving outdoor use and muddy & uneven surfaces.

APPLICATIONS

An enclosed gearbox and connectors provides greater protection against water, dust and mud. Fitted with a solid rubber, grooved drive wheel for durability and better traction on uneven, stony and slippery surfaces. Higher ground clearance than a standard electric pallet truck, reduces the risk of the truck grounding out and getting stuck, when used on uneven or sloping surfaces.

FEATURES

Replacing a hand pallet truck with an electric pallet truck eliminates operator pushing, pulling and pumping of heavy loads. It prevents staff sickness and injuries associated with manual handling.

Key Features

Nothing to show

Technical Data
Unit
Info
Model
E-Truck Terrain (EPT20-15ET2H)
Operator Type
Pedestrian
Lift Type
Electric
Load Capacity
Kg
1500
Net Weight (including battery)
Kg
195
Dimensions
Unit
Info
Lowered Height (Forks)
mm
80
Lift Height
mm
195
Fork Span
mm
560
Fork Length
mm
1150
Load Centre
mm
600
Overall Width
mm
560
Overall Length
mm
1673
Turning Radius
Wa mm
1505
Aisle width (Euro Pallet: 800 x 1200)
mm
2179
Aisle width (UK Pallet: 1000 x 1200)
mm
2307
Ground Clearance
mm
30
Wheels
Unit
Info
Fork Roller Material
Polyurethane
Drive Wheel Material
Rubber, Grooved
Drive & Performance
Unit
Info
Drive Motor Power (Kw)
kw
0.75
Travel Speed, loaded/unloaded (Km/h)
Km/h
3.8/4
Max Gradeability on slopes, loaded / unloaded
%
5 / 16
Battery Voltage/Capacity A/h
V / A/h
24 / 65
Battery Type
AGM Maintenance Free
Lift Motor Rating
Kw
0.8
Lift Speed with/without load
m/ s
0.027/0.038
Lowering Speed with/without load
m/ s
0.059/0.039

Technical Tab Image
More Images

Scroll along the images to see more

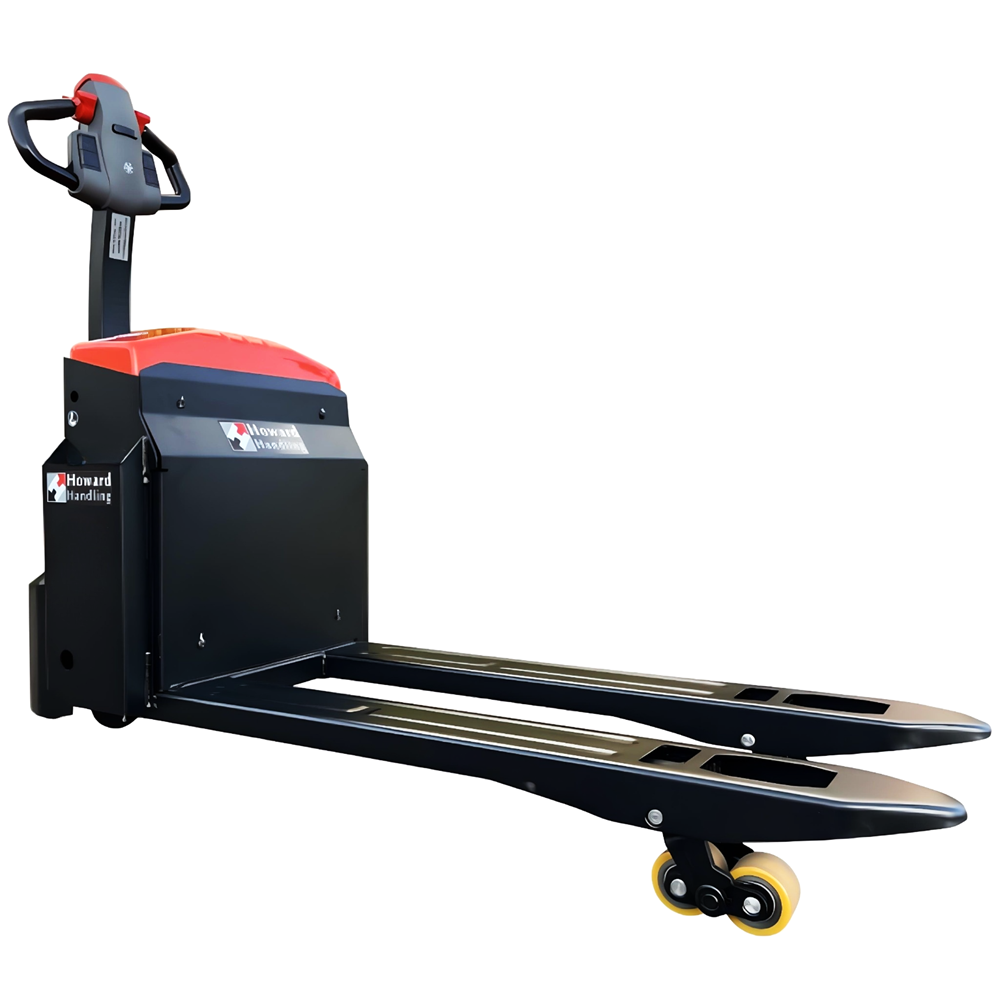

E-Truck Terrain

Electric Pallet Truck for Outdoor Use

  • 1.5 ton lift capacity
  • Designed for outdoor use & uneven ground
  • Greater water, dust and mud resistance
  • Grooved drive wheel for excellent traction
  • Small, compact design
