Transporter Li-ion Electric Pallet Truck with Weighing Scale, 1500kg

The Transporter Li-ion is the smallest and most versatile powered pallet truck in our range. Supplied with a standard 24V 20A battery, or with an optional 2 battery setup to double your running time. When also fitted with an optional weighing scale, this truck is flexible enough to handle check weighing and transport of incoming goods in light, medium or heavier duty applications.

Fitted with 1 lithium-ion battery as standard, the light pull-out battery gives an estimated real life working time of 5.5 hours: enough to last the course of the day in most light-medium use applications. For heavier users, an optional second battery increases the estimated working time to 11 hours before the truck requires recharging. And swapping the discharged battery for the fully charged backup couldn't be easier: the Transporter's second battery compartment means the spare battery is with you all the time and available on demand. With standard 1 battery setup, the truck is supplied with a document tray and the 2nd compartment is used as a handy document holder!

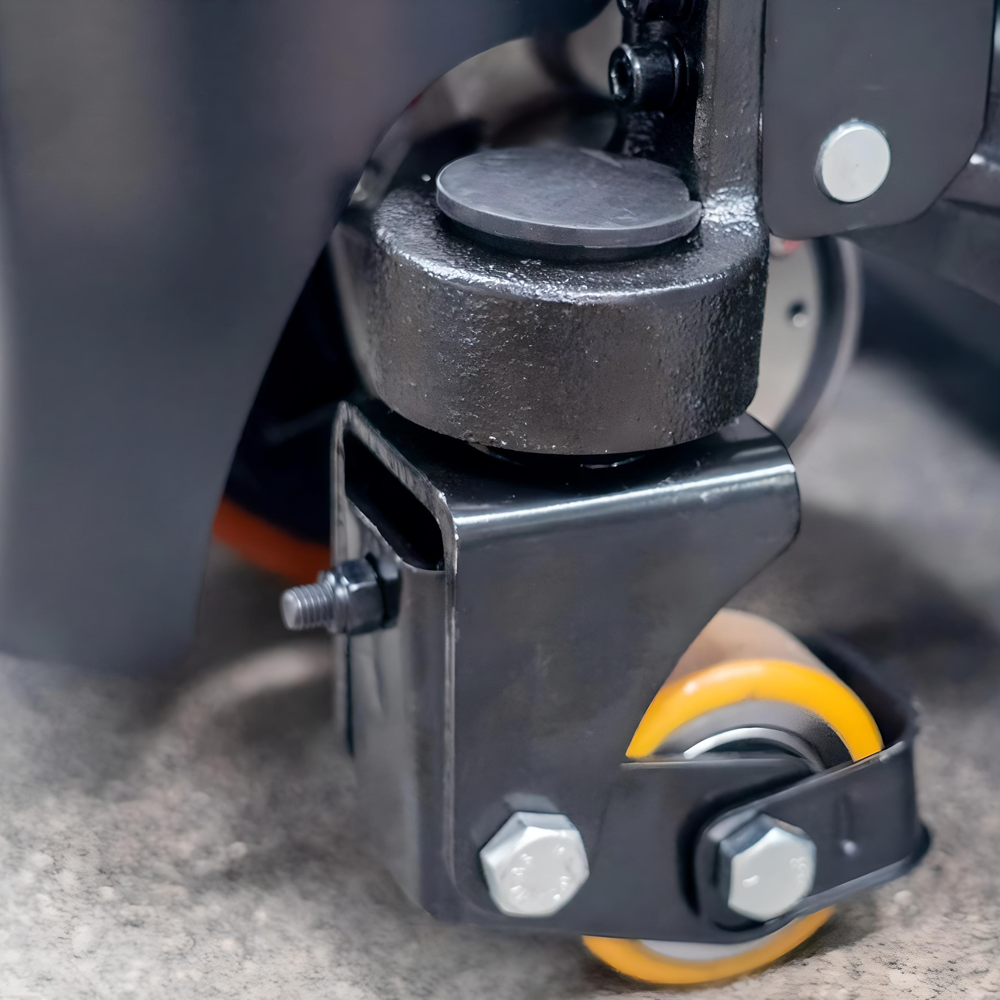

As an option, the truck can be fitted with additional support castors for increased stability: recommended for applications involver wider, taller or heavier loads.

Supplied with an external charger, the Transporter can still be used while a battery is charging. An exceptionally low own weight of only 155kg and a width of only 590mm makes the Transporter stand out from many other electric pallet trucks in its class, fitting where they cannot go. Creep (turtle) speed allows slow, precise movement of pallets.

Small dimensions and a very low own weight makes this electric pallet truck especially useful in small, confined areas. All-electric lift, lower and drive requires no operator effort to move pallets of up to 1.5 tons.

Weigh Scale:

Fitted with a high quality Ravas 1100 indicator, the Transporter is fitted with 4 load cells for a high weigh accurracy of 0.1% of the applied load, in 1kg increments. Loads can be weighed in kgs or lbs. Tare, totalisation and automatic switch-off features. As an option, the scale can also be supplied with a built-in printer, able to print gross, tare and net weights (kg or lb). A mobile weigher eliminates the need for fixed weighing stations, freeing up warehouse space.

FEATURES

Replacing a hand pallet truck with an electric pallet truck eliminates operator pushing and pulling of heavy loads. It prevents staff injuries and sickness associated with manual handling.

Key Features

Nothing to show

Technical Data
Unit
Info
Model
Transporter Li-ion With Scale
Operator Type
Pedestrian
Lift Type
Electric
Load Capacity
Kg
1500
Net Weight (without battery)
Kg
150
Net Weight (including battery)
Kg
155
Dimensions
Unit
Info
Lowered Height (Forks)
mm
90
Lift Height
mm
185
Fork Span
mm
560
Fork Length
mm
1150
Individual Fork Width
mm
155
Gap Between Forks
mm
250
Load Centre
mm
600
Overall Width
mm
590
Overall Length
mm
1575
Ground Clearance
mm
25
Wheels
Unit
Info
Fork Roller Material
Polyurethane
Drive Wheel Material
Polyurethane
Drive & Performance
Unit
Info
Drive Motor Power (Kw)
kw
0.75
Travel Speed, loaded/unloaded (Km/h)
Km/h
4 / 4.5
Max Gradeability on slopes, loaded / unloaded
%
5 / 16
Battery Voltage/Capacity A/h
V / A/h
24 / 20
Battery Type
Maintenance Free Lithium Ion
Charger Internal or External / Rating
External / 24V 4A
Lift Motor Rating
Kw
0.5
Lift Speed with/without load
m/ s
0.017 / 0.023

More Images

Scroll along the images to see more

Transporter Li-ion with Scale

Electric Pallet Truck with Weigh Scale

  • Capacity 1500kg
  • Fully powered for near effortless pallet handling & check weighing
  • High quality Ravas scale
  • 4 load cells for high weighing accuracy of 0.1%
  • Weigh in kg or lb
  • Tare, totalisation and auto switch-off features
  • Pull out li-ion battery with fast recharge time
Awaiting videos, please check back soon
