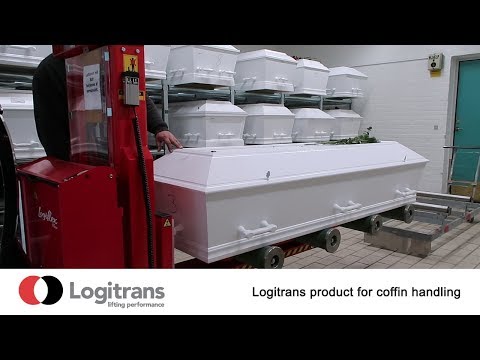

Logitrans Electric Coffin Lifter, Turner & Transporter, 300kg

From Danish materials handling experts Logitrans, this high quality, powered casket and coffin handler lifts, turns and transports coffins to a max weight of 300kg. No operator effort is required: the handler has powered lift, lower and drive. The rubber coated rollers are electrically driven for precise and gentle movement, allowing coffins to be handled in a safe and respectful manner.

A unique function of the Logitrans casket handler is its ability to turn coffins horizontally: the roller bed rotates 360 degrees, so that caskets can be precisely positioned: eliminating the operator back and strain injuries associated with heavy manual handling in crematoriums, mortuaries and funeral directors.

With AC technology, the Logitrans Coffin Handler has a programmable Curtis controller, allowing functions such as travel speed to be adjusted to suit individual user requirements. The lifter can also be built to handle bespoke coffin sizes, or modified with custom bespoke features to suit your application. A stainless steel coffin lifter is also available. Please contact us to discuss your requirement.

Features:

Key Features

Nothing to show

Logitrans Electric Coffin Lifter, Turner & Transporter, 300kg (47 stones)

Technical Data
Unit
Info
Model
Logitrans Powered Coffin Lifter & Turner
Operator Type
Pedestrian
Lift Type
Electric
Load Capacity
Kg
300
Wheels
Unit
Info
Fork Roller Material
Vulkollan
Drive Wheel Material
Rubber / Vulkollan / Multigrip
Drive & Performance
Unit
Info
Drive Motor Power (Kw)
kw
1.2
Travel Speed, loaded/unloaded (Km/h)
Km/h
5 / 6 (below 500mm), 3 /4 (over 500mm)
Battery Voltage/Capacity A/h
V / A/h
24 / 115
Battery Type
Maintenance Free
Charger Internal or External / Rating
Internal 24V 15A - 230V
Lift Motor Rating
Kw
1.2
Lift Speed with/without load
m/ s
0.07 / 0.12
Lowering Speed with/without load
m/ s
0.12 / 0.07

More Images

Scroll along the images to see more

Coffin & Casket Handler

Casket & Coffin Lifter & Turner, 300kg

  • Lift, transport and rotate coffins up to 300kg
  • Powered lift, lower, slide & propulsion prevents back and strain injuries at mortuaries, crematoriums and funeral directors
  • Powered soft compound rollers ensure gentle coffin handling
  • 360 degree rotation
  • 2 year warranty
