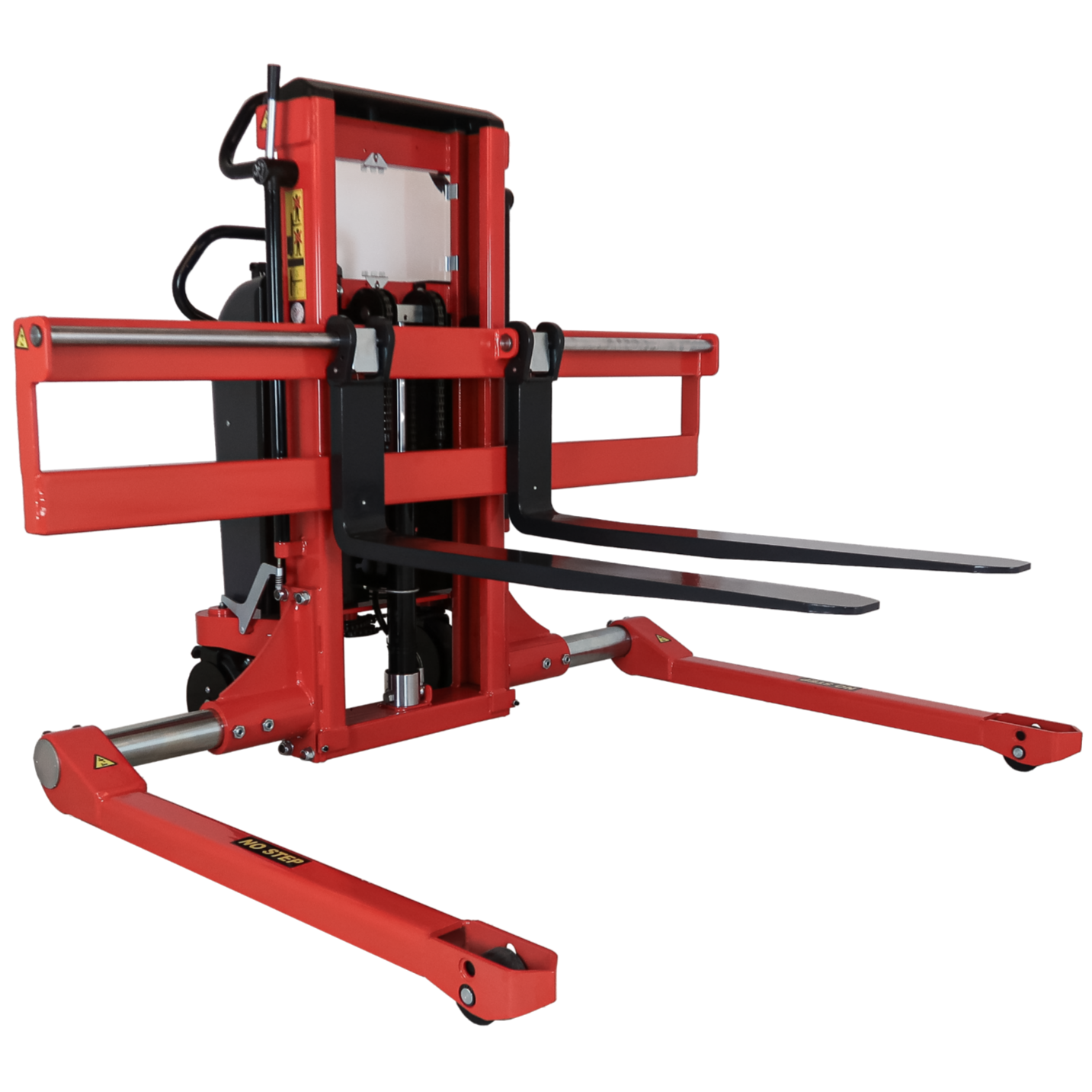

Logitrans ELFS 1001 / ELFS 1201, Semi Electric Straddle Stacker Truck, 1000kg / 1200kg

For the ultimate flexible multi-tasker, look no further than the Logiflex from Danish manufacturer Logitrans. Available in manual, semi-electric and fully powered versions, with one truck you can lift a pallet, transport a reel, turn a drum and move a heavy machine. High flexibility and efficiency - this stacker can transport, lift and handle many types of goods.

Built to excellent European standards, all Logitrans equipment is backed up with a 2 year parts warranty.

Customise your ELFS: special fork sizes and fork types are available, to lift non standard pallets, as well as box pallets, crates, stillages, dolavs and IBC containers. The forks can be easily detached and replaced with other attachments (eg boom spear, jib crane, drum forks, drum turner, platform table) for multi-tasking. The stacker can be modified with bespoke features, to handle other non palletised goods such as Euro bins & tote bins. Personalise your ELFS by having it painted in your company colour. Please contact us to discuss your requirement.

The standard ELFS has forks that are adjustable from 350mm-800mm. Wider fork spans are available (350mm-920mm, 560mm-1056mm). The support legs are also adjustable and available in small, medium, large or extra large. Custom support leg spans are available. With such flexibility, the ELFS can handle almost any pallet type (including low profile pallets), in addition to reels, drums and other non palletised goods and machinery. It is perfect for retail, manufacturing and warehouse packing and production areas, as well as shops and offices. Many different tasks can be performed with one machine.

A stainless steel version is also available for high care areas in food production, chemical and pharmaceutical industries. In addition, a partly stainless steel stacker can be supplied, for use in production areas where only parts in direct contact with the handled product must be stainless.

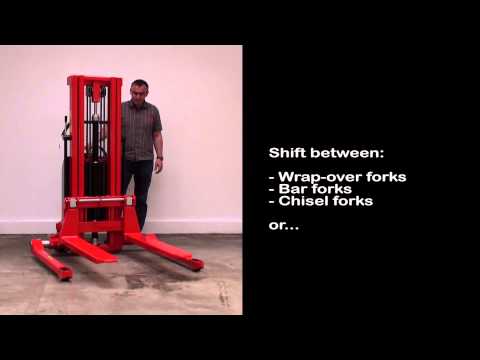

For fragile, or expensive goods that require careful handling, an optional slow lowering valve will lift goods slowly and carefully, preventing them from being damaged by sudden stops when lifting & lowering (see video).

Logitrans put their focus on the safety and ergonomic working conditions of the user. The Mini can be adjusted to the individual user, and the low overall height gives the operator optimum view conditions. No damage to surroundings, pallets and goods – Logiflex has an elegant design with rounded corners.

Features:

• Electric lift and manual propulsion with choice of lift heights
• Adjustable fork width and support legs for handling different pallet sizes
• Optional: short and long fork lengths and support leg lengths (600mm, 800mm, 1520mm* or custom size)
• Forks can be easily detached and replaced with other attachments (eg crane arm, boom spear, platform table, drum turner) for multi-tasking
• Compact construction and tight turning angle: perfect for confined areas
• Low over-all height for optimum operator view
• 2 year warranty
• Powered drive and 1200kg capacity versions are also available (1200kg fitted with chisel forks)
• A wrapover version is available for handling open pallets (where bottom runners are not present)
• Optional: remote control
• Optional: level control - the height of the pallet is automatically adjusted to optimum working height, as it is loaded/unloaded
• This model can be customised with alternative fork types and bespoke fork widths & fork lengths, to handle many different pallet types.
• This model can be customised with bespoke platforms, boom spears, crane arms & drum fork sizes, to suit your specific requirements.

* Reduced capacity 750kg
