Logitrans HS Inox, HSI 1000, 1000kg

The HS Inox stainless steel stacker from Danish manufacturer Logitrans is designed for optimum hygienic handling of goods and to minimise the risk of bacterial contamination.

Logitrans have developed their stainless products for environments where strict hygiene is needed on the surfaces that are in direct contact with the goods being handled (e.g. meat, fish and pharmaceutical).

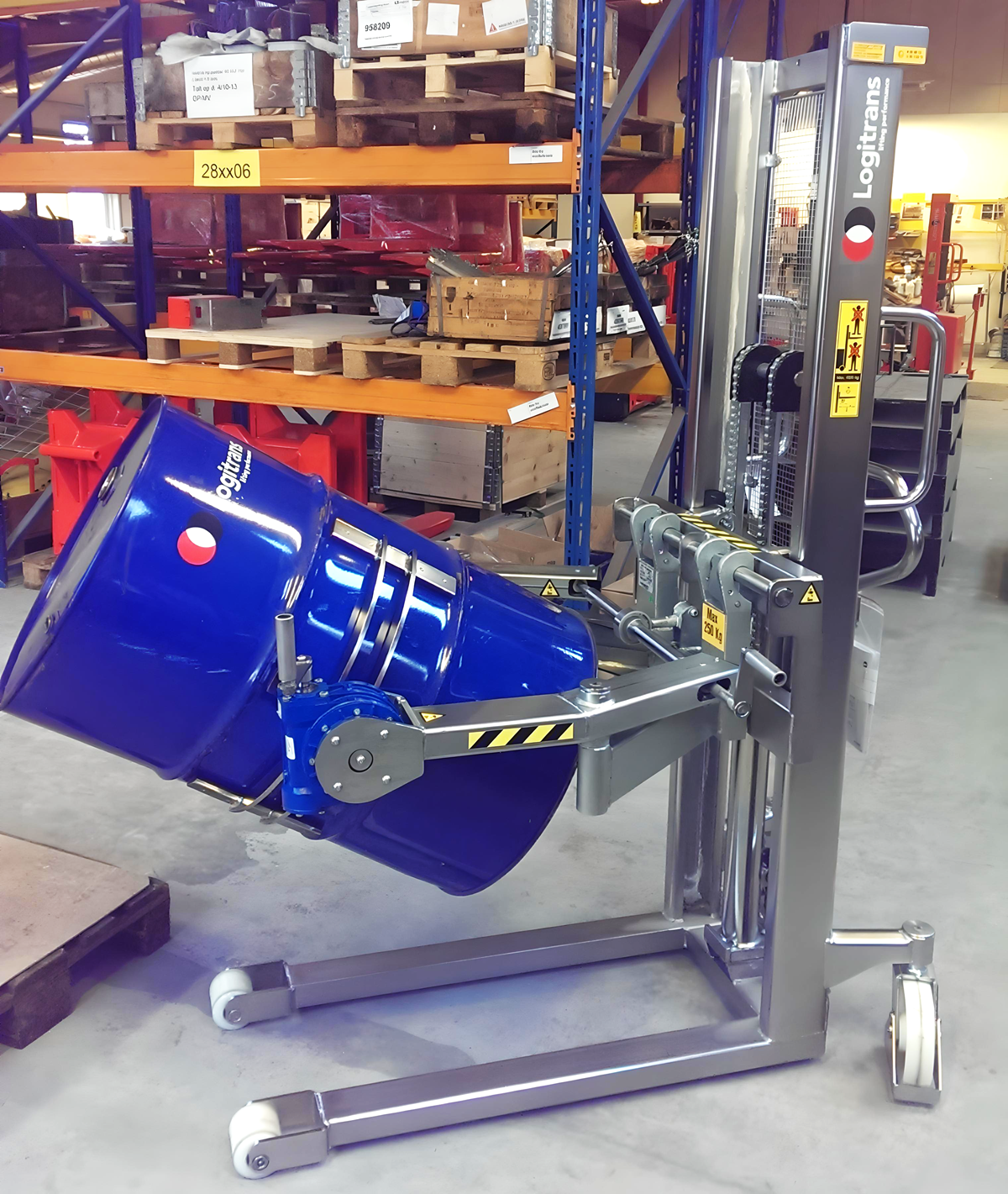

Customise your HS Inox: alternative fork spansfork lengths and fork types are available for handling non standard pallets, IBCs, box pallets, crates, stillages and dolavs. The forks can also be replaced with other attachments (eg drum turner, boom spear, crane arm) for handling non-palletised goods.

The design focuses on the safety and ergonomic working conditions of the user. High quality is ensured through an extended test programme and in co-operation with experts in health and safety.

As an option, a standard (painted) stacker with stainless steel forks is also available. This may be a cheaper solution for applications where a fully stainless steel lifter is not needed, but where stainless steel is needed on surfaces in direct contact with goods. A semi stainless steel stacker truck reduces the risk of product contamination from flaking paint. Please contact us for more info.

Features:

Key Features

Nothing to show

Logitrans HS Inox, HS1000 RF-Semi, 1000kg

Technical Data
Unit
Info
Model
HS Inox
Operator Type
Pedestrian
Lift Type
Manual
Load Capacity
Kg
1000
Dimensions
Unit
Info
Lowered Height (Forks)
mm
90
Lift Height
mm
1200 - 2450
Fork Span
mm
560, 680
Fork Length
mm
1150
Individual Fork Width
mm
163
Load Centre
mm
max 600
Length without forks
mm
390
Aisle width (Euro Pallet: 800 x 1200)
mm
2020
Wheels
Unit
Info
Fork Roller Material
White Nylon
Steering Wheel Material
White Nylon
Drive & Performance
Unit
Info
Lift Speed with/without load
m/ s
normal/quick 17/54 per pump
Lowering Speed with/without load
m/ s
0.21

More Images

Scroll along the images to see more

Logitrans HS Inox

Stainless Steel Stacker Truck, 1000kg

  • Exceptionally high quality stacker, from Danish manufacturer Logitrans
  • Developed for environments with severe hygiene demands - eg food & pharmaceutical
  • Closed fork construction for easy cleaning - few hiding places for bacteria
  • Manual lift & propulsion with quick lift pump
  • All surfaces in direct contact with goods are made from AISI 316L stainless steel
  • 2 year warranty
