Multi Drum Turner
Electric Lift & Turn, Capacity 350kg
- Multi drum turner can handle many different types of drums in both vertical and horizontal positions
- Lifts, lowers and turns both steel drums and plastic drums, square and round drums
- Specially designed grippers are easily adjusted to handle both small and large drums from 300mm to 600mm diameters
- Electric lift/lower and turn, 360 degree rotation
- Available with optional powered propulsion - no operator effort required
- 2 year warranty
| Lift Height (mm) | Straddle Width (mm) |
Info | Availability | Net Price (GBP) |
Buy Now |
|---|---|---|---|---|---|
| 2100 | Adjustable | Manual Drive | 3-5 Weeks | £ 11,395 | |
| 2100 | Adjustable | Powered Drive | 3-5 Weeks | £ 16,195 |
Logitrans Multi Drum Turner, ELFMDT & ELFSMDT with Electric Lift & Turn, 350kg
Logitrans Multi Drum Turner, SELFMDT & SELFSMDT with Powered Lift, Turn & Drive, 350kg

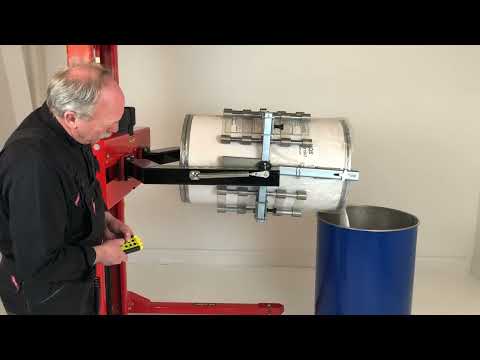

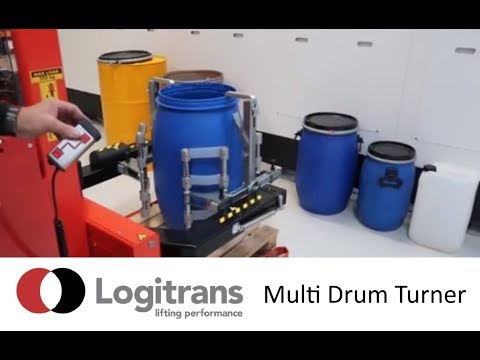

For the ultimate flexible drum handler, look no further than the Logitrans Multi Drum Turner. It can handle large or small drums, steel or plastic drums, square or round drums - and lift and turn them from vertical or horizontal positions (watch video).
Drum rotation, opening & closing of the gripping arms, lift & lower and forward/reverse drive are fully powered - no operator effort is required. For lighter applications, a semi electric drum turner with manual propulsion, is also available.
The Multi Drum Turner is fitted with flexible specially designed grippers, that can be adjusted according to drum type and diameter. The grippers can be easily be adjusted to fit large or small drums. A touch screen LCD display is used to program the precise drum turning angle, speed and rotation. Several turning angles can be programmed. The stop position of the clamping arms can also be programmed: they can be adjusted to specific drum diameters, to prevent drum damage caused by under or over-clamping.
The Logitrans Multi Drum Turner is available with wrapover or straddle support legs. The wrapover version is suitable for drums that are placed on open pallets (without bottom runners). A straddle drum turner is required when lifting/lowering drums onto closed pallets (with bottom runners), and for handling larger drums.
Customise your Multi Drum Turner: for drum sizes outside of the normal range, the Multi Drum Turner can be supplied with custom bespoke gripping arms. It can also be customised with features to allow other items to be tipped (eg storage containers, bins & cylinders).
A stainless steel drum turner can be supplied for high care areas in food and pharmaceutical enviroments. In addition, a partly stainless steel drum turner can be supplied, for use in production areas where only parts in direct contact with the handled product must be stainless. Please contact us to discuss your application.
From Danish manufacturer Logitrans, the Multi Drum Turner is built to excellent standards and is backed up with a 2 year warranty.
Features:
- Handles steel, plastic, small, low, high, square, round drums from diameters Ø300 to Ø600
- Horizontal or vertical position

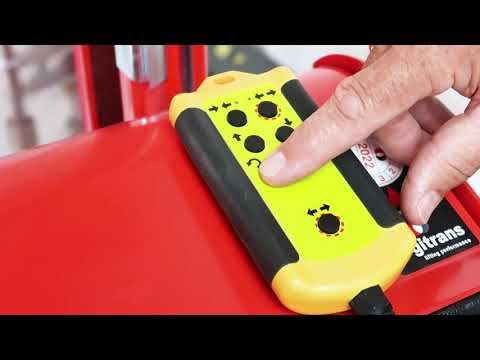

- Remote control for rotation, lifting/lowering and clamping (optional wireless remote handset also available)
- Digital controller with large LCD touch-screen display
- Able to program several stops, turning angle, speed, rotation and clamping strength
- Strong construction, for low maintenance costs and long operating life
- Easy, quick, user-friendly drum handling
- Ergonomically correct handle
- Log function: shows operation time, actual position/turning angle, number of operations, overload registration, battery status and error messages
- 2 year parts warranty
